Tools and Materials Needed:

• First you'll need to find a picatinny rail for sale (preferably one compatible with your AK model)

• Hex keys or Allen wrenches

• Small flat-head screwdriver (if needed)

• Thread-locking compound (optional for secure fit)

• Clamp or vise with padding (to hold the rifle steady)

• Safety glasses and gloves

---

Step 1: Safety First

• Ensure your firearm is unloaded. Remove the magazine, pull back the bolt, and visually inspect the chamber to confirm absence of ammunition.

• Place the rifle in a secure vise with padded jaws to prevent scratches.

Step 2: Remove Original Handguard (if necessary)

• Follow your rifle’s manual to disassemble the handguard or other components where the rail will be mounted. Usually, this involves removing the rear sight if replacing it with a rail mount, or detaching the current handguard.

Step 3: Prepare the Mounting Area

• Clean the top and sides of the barrel or existing mounting points to ensure a secure fit.

• If attaching a side or top rail, identify the mounting holes and ensure they are clear of debris.

Step 4: Install the Picatinny Rail

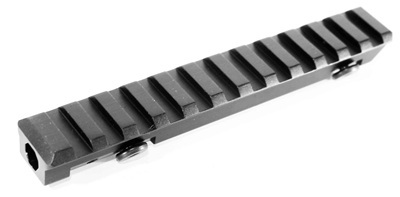

• For side mounting rails:

  • Align the rail over the existing mounting holes.

  • Insert the supplied hex head screws into the mounting holes.

  • Tighten screws gradually using the appropriate hex key, but do not over-tighten to avoid damaging the rail or the rifle.

  • A small amount of thread-locking compound on the screws can help secure the mount.

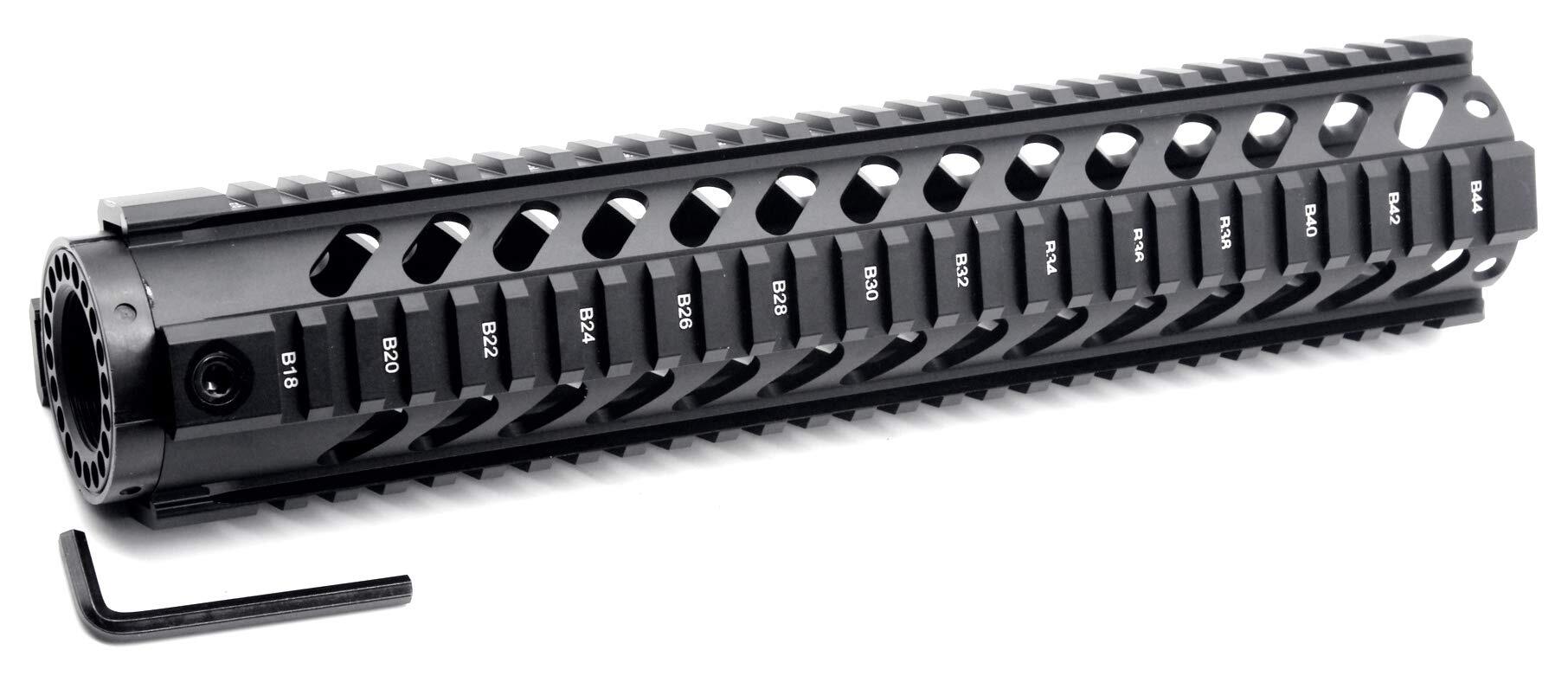

• For handguard-mounted rails:

  • Slide the rail into the designated slots on the handguard.

  • Secure with the provided screws and hex wrenches, tightening evenly.

  •

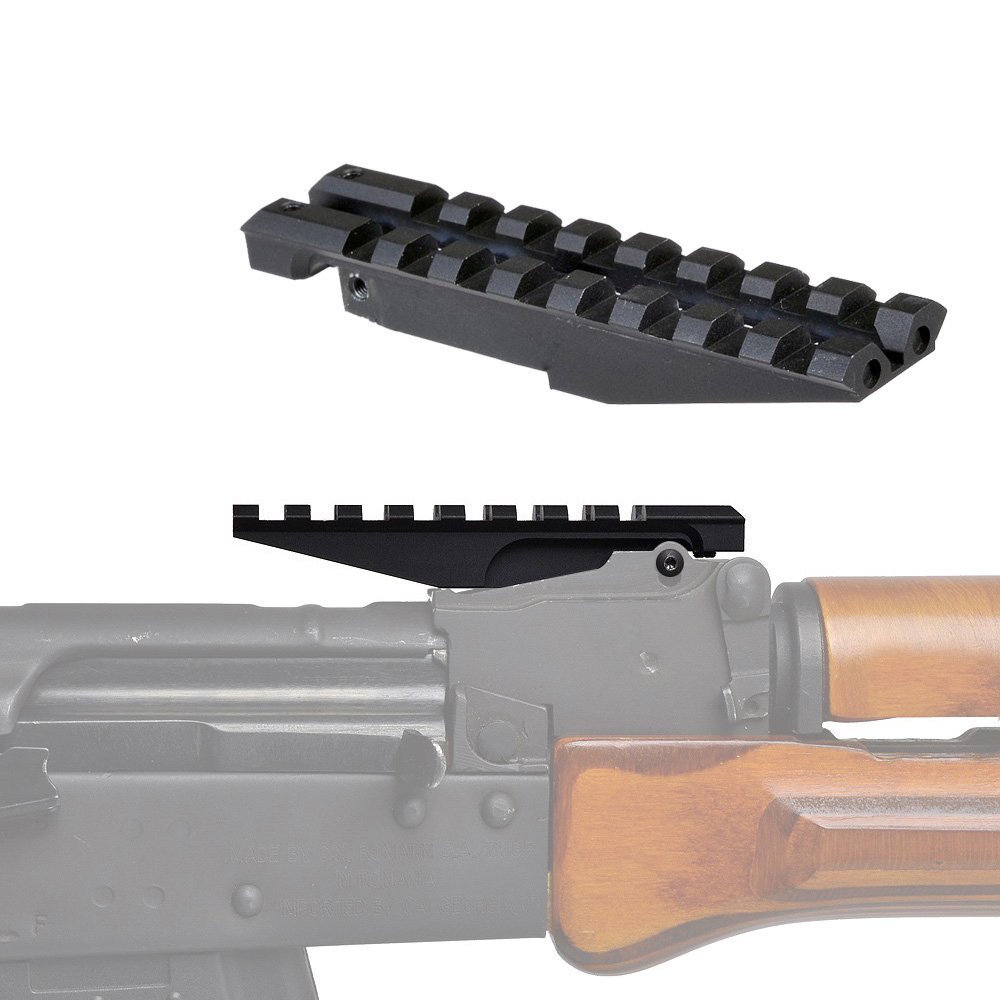

• For rear sight rails:

  • Replace your rear sight with the Picatinny rail component, following the specific model instructions.

  • Use the supplied screws—torque to manufacturer specs (often around 3-4 Nm).

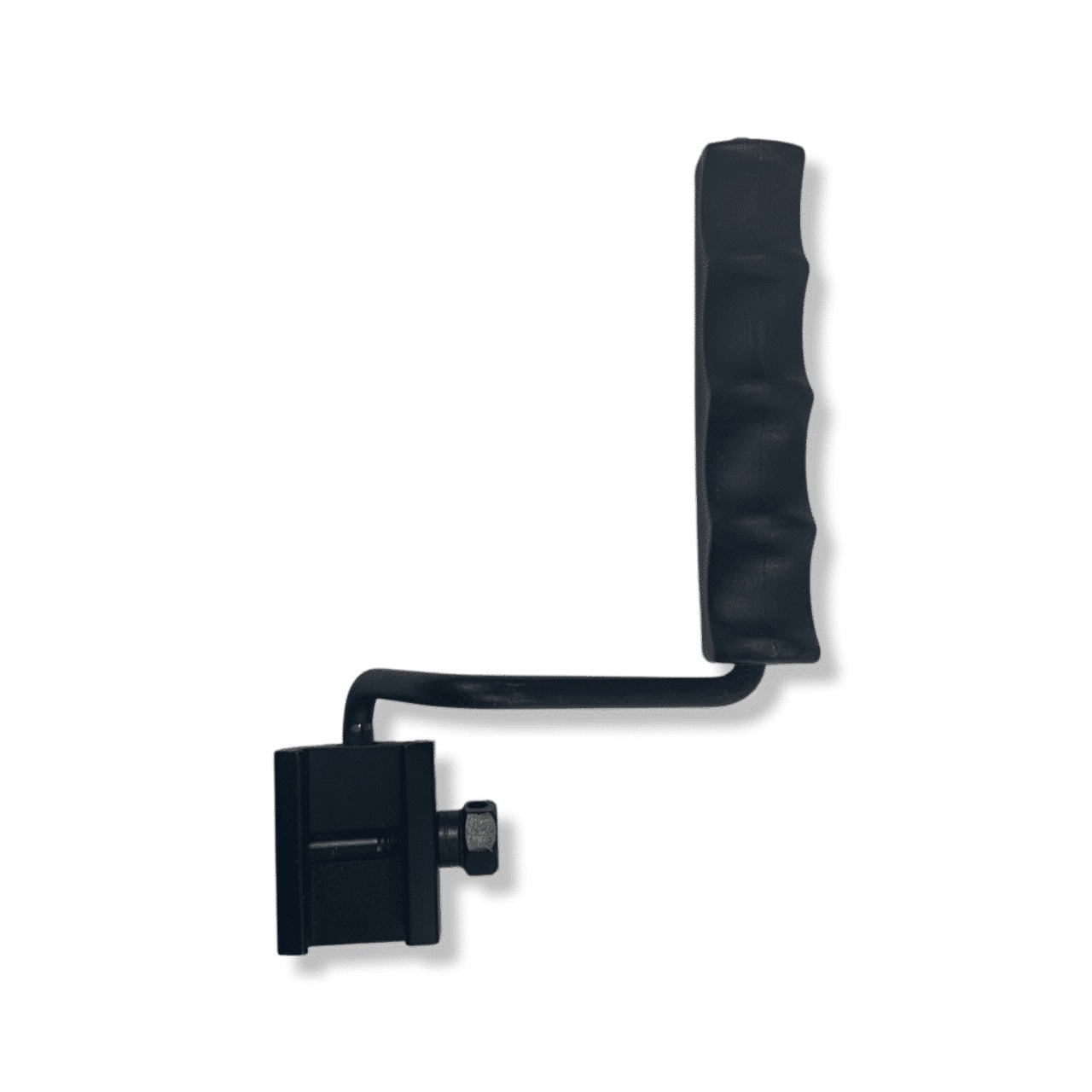

• Picatinny Rail Carry Handle: A Classic Upgrade

  Many AK enthusiasts choose to replace their traditional carry handle with a Picatinny rail-equipped version. This upgrade allows for easy mounting of optics and accessories directly onto the carry handle, preserving the classic look of the AK while adding modern functionality.

  The Picatinny rail carry handle typically bolts onto the rifle’s receiver in place of the standard handle, providing a stable and elevated mounting platform. This setup is especially popular for iron sight users who want quick access to red dots, scopes, or backup sights without replacing the entire receiver cover or handguard.



• Installing a rail carry handle can enhance your rifle’s versatility, letting you switch accessories with ease while keeping your AK’s iconic silhouette.

Step 5: Final Checks and Tightening

• Double-check the alignment of the rail, ensuring that it is straight and positioned for your optics.

• Verify all screws are tightened appropriately.

• Do NOT overtighten, over-torque can damage the rail or mounting surface.

Step 6: Attach Accessories

• Mount your preferred optics, lights, or laser devices onto the newly installed rail.

• Use the correct mounting hardware and torque settings for each accessory.

Step 7: Test and Function Check

• Reassemble any disassembled parts.

• Check the stability of the mounted rail and accessories by lightly tugging.

• Test fit your optics to confirm proper sight alignment.

Problems One May Encounter and Troubleshooting Options

Installing rail integration systems on your AK rifle can generally be straightforward, but some common problems might arise during or after installation. Being aware of these issues and knowing how to troubleshoot them ensures your rail and accessories remain safe and reliable.

1. Loose Accessories or Rail Movement

Problem: Over time or after firing, your mounted optics or accessories might loosen or the rail itself may have slight play.

Troubleshooting:

• Double-check that all mounting screws are properly tightened using the recommended torque (typically 3-4 Newton meters). Avoid overtightening to prevent damage.

• Apply a reliable thread-locking compound (like Loctite) on screws to prevent loosening due to recoil vibrations.

• Inspect screws and mounting hardware for wear or damage and replace if necessary.

2. Misalignment of the Rail or Accessories

Problem: Accessories do not sit flush or align properly with the rail slots, causing unstable mounting or sighting issues.

Troubleshooting:

• Remove the accessory and inspect for debris or manufacturing defects. Clean both rail and accessory mounts carefully.

• Ensure the rail itself is mounted evenly and flush against the rifle’s receiver or handguard. Minor gaps can cause misalignment.

• Take care to install the rail on the correct side (for side-mount rails) to avoid interference with rifle components like the gas tube or charging handle.

3. Rail Does Not Fit Due to Receiver or Rifle Variations

Problem: Due to manufacturing tolerances or aftermarket modifications, the rail may not fit correctly, or the mounting holes don’t line up perfectly.

Troubleshooting:

• Check for rivets, welds, or other obstructions blocking the mounting points; removal or slight modification (careful filing or sanding) may be required.

• Consult your rail manufacturer’s instructions for any model-specific installation tips or required adjustments.

• In some cases, slight bending or reshaping of the rail (with appropriate tools and care) to fit the unique profile of your rifle may be necessary.

• If in doubt, consult a professional gunsmith.

4. Damaged or Defective Rail or Mounting Hardware

Problem: Rail or screws show signs of defects, such as stripped threads, dents, or warped metal, that prevent secure attachment.

Troubleshooting:

• Inspect all parts before installation and reject damaged components.

• Replace stripped screws or damaged mounting clamps immediately.

• Use proper tools to avoid stripping screw heads during installation.

5. Interference with Existing Rifle Components

Problem: The rail or mounted accessories interfere with the rifle’s functioning parts (e.g., gas tube, charging handle, safety lever).

Troubleshooting:

• Make sure to select a rail designed explicitly for your AK model to avoid compatibility issues.

• Verify that accessories are not mounted where they clash with moving parts.

• Adjust or reposition accessories if interference occurs, or opt for low-profile mounts.

---

Final Advice

Always follow safety protocols, including unloading the firearm before any modification. Take your time during installation, and if problems persist, seek help from a qualified gunsmith. Proper installation and addressing these common problems will ensure your Picatinny rail system enhances your AK rifle’s functionality and durability.

---

Additional Tips:

• Always follow your specific rifle and rail manufacturer’s instructions.

• If unsure about torque settings, use a torque wrench calibrated to the manufacturer’s recommendations.

• Periodically check the mounting screws for tightness after use.
